SDT-20A

Pen-type Digital Multimeter, 2000 Counts LCD Display

Product Line: SDT-20A

LVD: EN 61010-1:2010, EN 61010-2-033:2012, EN 601010-031:2015

EMC: EN 61326-1:2013, EN 61326-2-1:2013

OTHER:

Digital Multimeter SDT-20A
Specification	Range	Accuracy
DC Voltage	200m/2V/20V200V	±(0.5%+5)
DC Voltage	600V	±(0.8%+5)
AC Voltage	2V/20V/200V/600V	±(1%+5)
DC Current	20m/200mA	±(1.8%+5)
AC Current	20m/200mA	±(2.0%+5)
Resistance	200/2k/20k/200k/2MΩ	±(1.0%+3)
Resistance	20MΩ	±(1.2%+5)
Feature
Display Count		2000
Diode Test		√
Continuity (audible)		√
Auto Power off		√
NCV		√
low Battery Display		√
Data Hold		√
MAX		√
Auto Range		√
General Characteristic
Power	1.5V（AAA）×2
Product Size	225X51.5X32mm
Product Net weight	125g

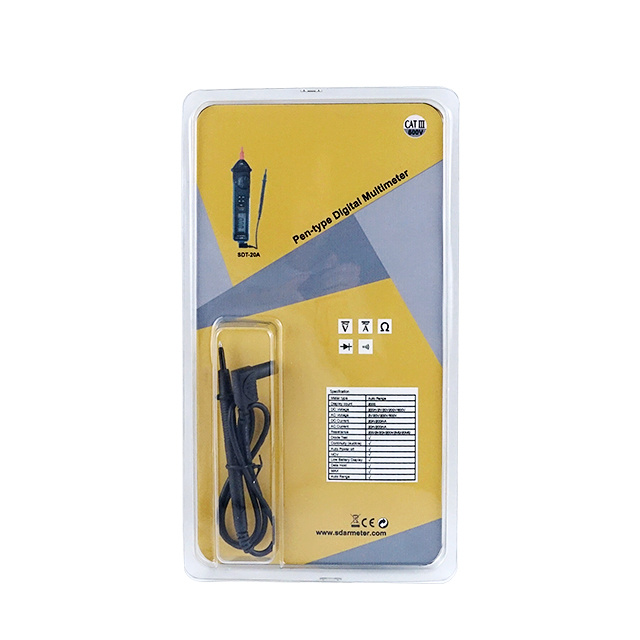

Standard Accessories	Battery,Test leads,Manual, Blister Card.
Safety Rating	CATⅢ 600V
