SCM-60C

Digital Clamp Meter with True RMS, 4000 Count LCD Display Test DC/AC Voltage,AC/DC Current,Resistance,Frequency Test,Capacitance,Temperature Diode Test,Continuity,Low Battery Indicator,Auto Range,Auto

Product Line: SCM-60C

LVD: EN 61010-1:2010, EN 61010-2-633:2012, EN 601010-031:2015

EMC: EN61010-2-030:2016 EN 61326-2-1:2013

OTHER:

Product description
parameter
Product parameters

Digital Clamp Meter with True RMS, 4000 Count LCD Display

Test DC/AC Voltage,AC/DC Current,Resistance,Frequency Test,Capacitance,Temperature

Diode Test,Continuity,Low Battery Indicator,Auto Range,Auto power off,Data Hold,Max Data Hold

Safety Rating: CATⅢ 600V

Digital Clamp Multimeter SCM-60C
Specification	Range	Accuacy
DC Voltage	400m/4/40/400/600V	±(0.8%+5)
AC Voltage	400m/4/40/400/600V	±(1.0%+5)
DC Current	400A	±(2.0%+5)
AC Current	400A	±(2.0%+5)
Resistance	400/4K/40K/400K/4M/40MΩ	＜1MΩ ±(1.0%+5) ≥1MΩ ±(2.0%+5)
Frequency test	10Hz-9.999MHz	±2%
Capacitance	10nF-4000μF	±(4%+5)
Temperature test	400°C/752°F	±(3%+5）
Feature
Count Display		4000
Jaw Size		33
Diode test		√
Continuity (audible)		＜50Ω
Low battery indicator		√
Auto/Manual		Auto
Overload indicator		OL
Auto power off		15min
data hold		√
Max/Min data hold		NA
True RMS		√
General Characteristic
Power	AAA 1.5V*3
LCD size	36.6×21.6 mm
Product Size	222×85×41mm
Product Net weight	262g

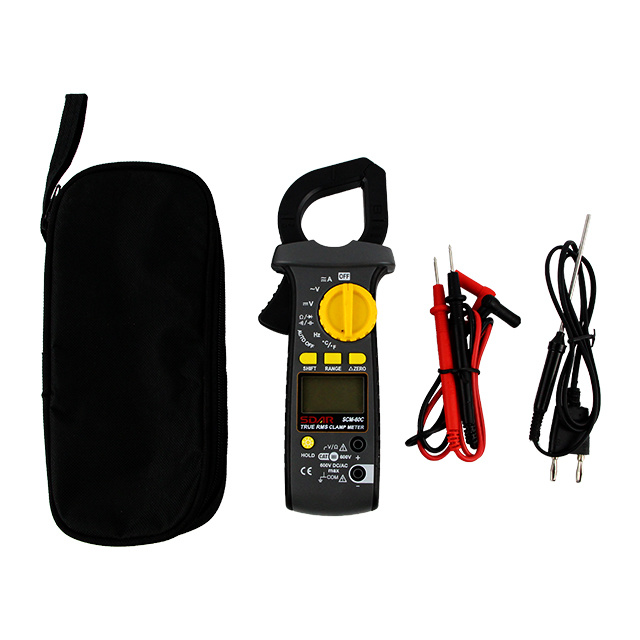

Standard Accessories	Battery,Test leads,Manual,Card,Nylon bag ,K-Type Temperature Probe
Safety Rating	CATⅢ 600V
