SDT-21C
Digital Multimeter,2000 Count LCD Display,Double Injection
Product Line: SDT-21C
LVD: EN 61010-1:2010, EN 61010-2-033:2012, EN 601010-031:2015
EMC: EN 61326-1:2013, EN 61326-2-1:2013
OTHER:
- Product description
- parameter
- Product parameters
-
Digital Multimeter,2000 Count LCD Display,Double InjectionTest DC/AC Voltage,DC/AC Current,Resistance,TemperatureDiode Test,Continuity,Low Battery indicator,Auto Range,BacklightSafety Rating: CATⅢ 600V
-
-
-
Digital Multimeter SDT-21C Specification Range Accuracy DC Voltage 600V ±(0.5%+5) AC Voltage 600V ±(1%+5) DC Current 200μ/200ｍA ±(1.5%+2) AC Current 200μ/200ｍA ±(1.8%+2) Resistance 20MΩ ＜1MΩ±(0.8%+5)
≥1MΩ±(2%+5)Temperature -40-752℉/-40-400℃ ≤0℃（32℉）±（8%+8）;
>0℃（32℉）; ±（1.2%+7）

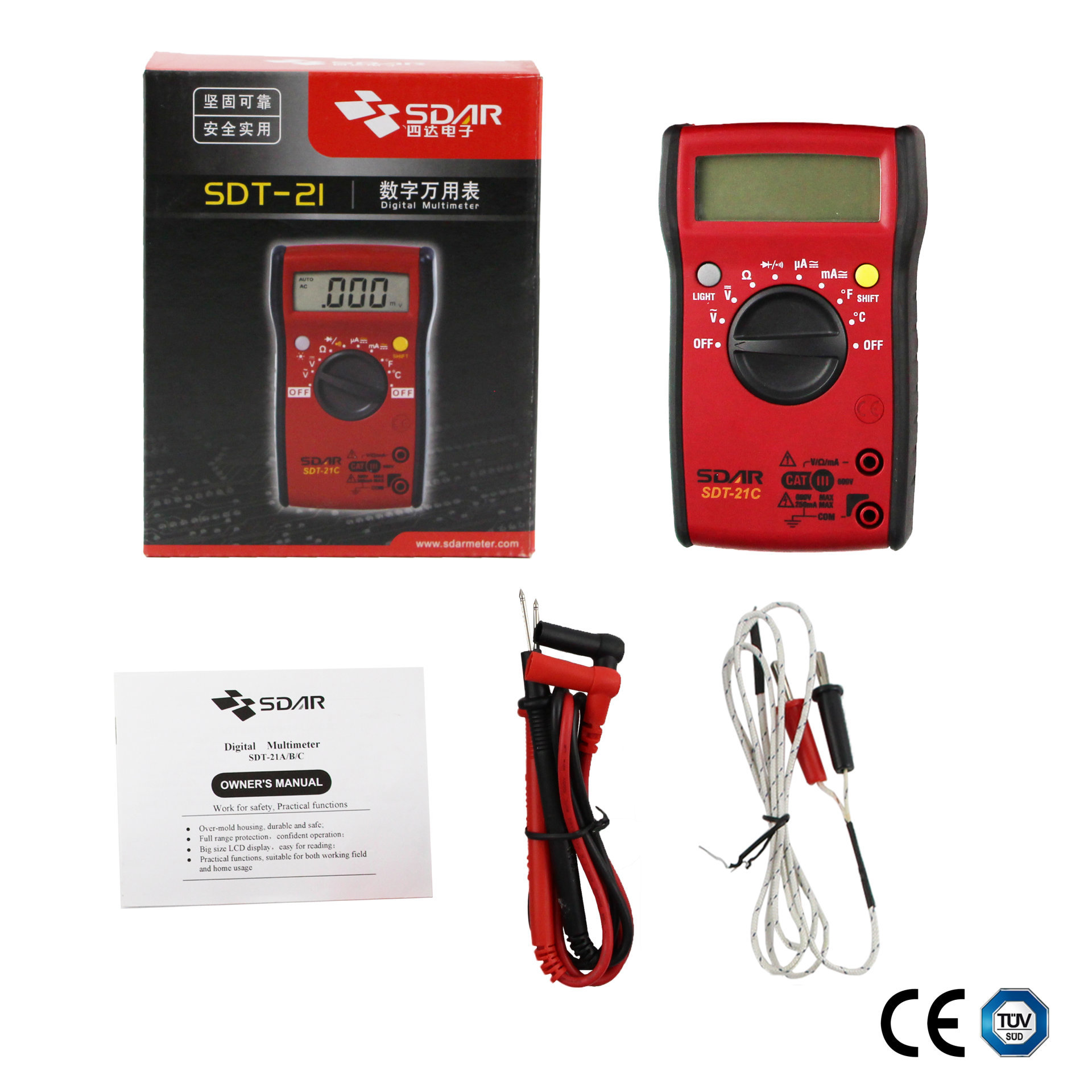

＞100℃（212℉）±（3%+3）Feature Display Count 2000 Continuty 50±25Ω √ Diode test √ Low battery indicator √ Overload indication OL Auto/manual Auto Backlight √ Frequency response(Hz) 50/60Hz √ General Characteristic Power AAA 1.5V*2 LCD size 61.6x26.2 mm Product Size 140x85x34mm Product Net weight 180g Standard Accessories Battery,Test leads,Manual, Blister Card , K- Type Temperature Probe Safety Rating CATⅢ 600V
