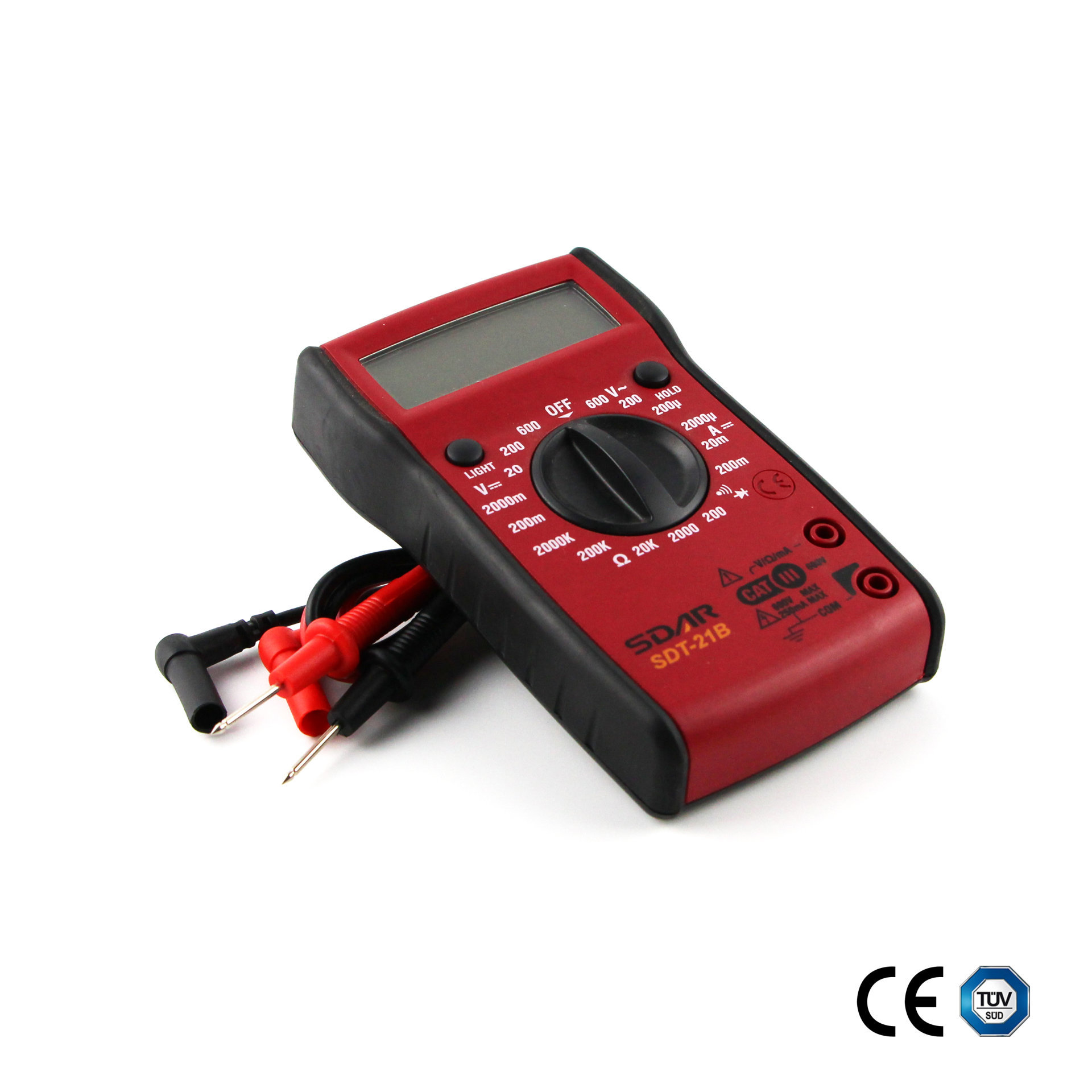

SDT-21B
Digital Multimeter,2000 Count LCD Display,Double Injection
Product Line: SDT-21B
LVD: EN 61010-1:2010, EN 61010-2-033:2012, EN 601010-031:2015
EMC: EN 61326-1:2013, EN 61326-2-1:2013
OTHER:
- Product description
- parameter
- Product parameters
-
Digital Multimeter,2000 Count LCD Display,Double InjectionTest DC/AC Voltage,DC Current,ResistanceDiode Test,Continuity,Low Battery indicator,Manual Range,BacklightSafety Rating: CATⅢ 600V
-
-
-
Digital Multimeter SDT-21B Specification Range Accuracy DC Voltage 200m/2000m/20/200/600V ±(1.2%+2) AC Voltage 200V/600V ±(2.5%+5) DC Current 200μ/2000μ/20m/200mA ±(1.8%+2) Resistance 200/2000/20k/200k/2000KΩ ±(1.5%+2) Feature Display Count 2000 Continuty 50±25Ω √ Diode test √ Low battery indicator √ Overload indication 1 Auto/manual Manual Backlight √ Frequency response(Hz) 50/60Hz √ General Characteristic Power 6F22 9v*1 LCD size 61.6x26.2 mm Product Size 140x85x34mm Product Net weight 194g Standard Accessories Battery,Test leads,Manual, Blister Card.; Safety Rating CATⅢ 600V
