SDT-21A

Digital Multimeter,2000 Count LCD Display,Double Injection

Product Line: SDT-21A

LVD: EN 61010-1:2010, EN 61010-2-033:2012, EN 601010-031:2015

EMC: EN 61326-1:2013, EN 61326-2-1:2013

OTHER:

  • Product description
  • parameter
  • Product parameters
  • Digital Multimeter,2000 Count LCD Display,Double Injection
    Test DC/AC Voltage,DC Current,Resistance,Battery Test
    Diode Test,Continuity,Low Battery indicator,Overload Indication,Manual Range
    Safety Rating:  CATⅢ 600V
  •

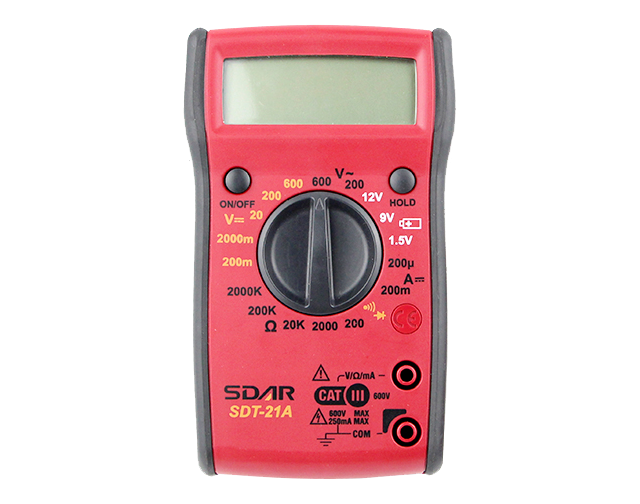

    Digital Multimeter SDT-21A
    Specification Range Accuracy
    DC Voltage 200m/2000m/20/200/600V ±(1.2%+2)
    AC Voltage 200V/600V ±(2.5%+5)
    DC Current 200μ/200mA ±(1.8%+2)
    Resistance 200/2000/20k/200k/2000KΩ ±(1.5%+2)
    Feature
    Display Count   2000
    Continuty                               50±25Ω
    Diode test
    Battery Test                              1.5/9/12V
    Low battery indicator
    Overload indication   1
    Auto/manual   Manual
    Frequency response(Hz)                               50/60Hz
    General Characteristic
    Power 6F22 9v*1
    LCD size 61.6x26.2 mm
    Product Size 140x85x34mm
    Product Net weight 194g
    Standard Accessories Battery,Test leads,Manual, Blister Card.;
    Safety Rating CATⅢ 600V
