SD-2003

Card-size ,auto range and 2000 counts LCD Display Test DC/AC Voltage,DC/AC Current, Resistance Diode test,Continuity,Auto Range,Auto Power off,Data Hold

Product Line: SD-2003

LVD:

EMC:

OTHER:

Product description
parameter
Product parameters

Card-size ,auto range and 2000 counts LCD Display

Test DC/AC Voltage,DC/AC Current, Resistance

Diode test,Continuity,Auto Range,Auto Power off,Data Hold

Digital Multimeter SD-2003
Specification	Range	Accuacy
DC Voltage	200m/2/20/200/600V	±(0.5%+3)
AC Voltage	2/20/200/600V	±(0.8%+3)
DC Current	20/200mA	±(1.8%+3)
AC Current	20/200mA	±(1.8%+3)
Resistance	200/2K/20K/200K/2M/20MΩ	＜1MΩ±(1.8%+3) ≥1MΩ±(2%+3)
Feature
Display Count		2000
Diode Test		√
Continuity(audible)		＜50Ω
Auto /Manual		Auto
Overload Display		OL
Low battery Display		√
Auto Power off		15min
Data hold		√
Frequcy(Hz)	50/60	√
General Characteristic
Power	2×1.5V Button Cell
LCD Size	39.5×20 mm;
Product Size	110×55×13mm
Product weight	76g

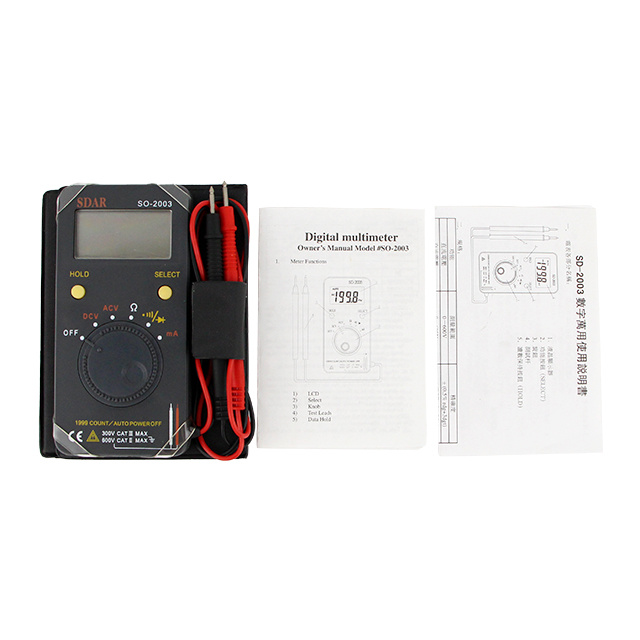

Standard Accessories	Battery,Test leads,Manual, Blister Card.
