Model: SDT-830C Products Series: SDT-830C

Product Line: SDT-830C

LVD: EN 61010-1:2010, EN 61010-2-033:2012, EN 601010-031:2015

EMC: EN 61326-1:2013, EN 61326-2-1:2013

OTHER:

  • Product description
  • parameter
  • Product parameters
  • Manual Range Digital MultiMeter and 2000 Counts LCD Display
    Test DC/AC Voltage,DC Current,Resistance
    Diode Test,Continuity,Data hold,Low Battery Display,Backlight

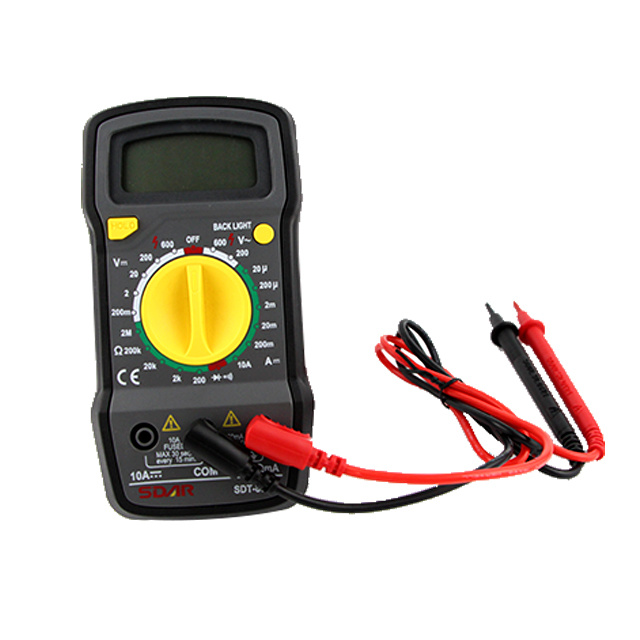

  • Digital Multimeter SDT-830C
    Specification Range Accuracy
    DC Voltage 200m/2/20/200/600V ±(0.5%+5)
    AC Voltage 200/600V ±(2%+10)
    DC Current 20μ/200μ/2m/20m/200mA ±(1.2%+5)
    10A ±(3%+15)
    Resistance 200/2K/20K/200K/2MΩ ±(0.8%+5)
    Feature
    Count Display   2000
    Data Hold   √
    Diode test   √
    Continuity (audible)   √
    Backlight   √
    Low battery indicator   √
    Auto/Manual   Manual
    General Characteristic
    Power 6F22 9v*1
    LCD size 49x26mm
    Product Size 143x75x44mm
    Product Net weight 206g
    Standard Accessories Battery,Test leads,Manual, Blister Card.;
    Safety Rating CATⅢ 600V
