SD-07A

Card-size ,auto range and 2000 counts LCD Display Test DC/AC Voltage,DC/AC Current, Resistance Diode test, Continuity,Max data hold,Low battery indication

Product Line: SD-07A

LVD:

EMC:

OTHER:

Product description
parameter
Product parameters

Card-size ,auto range and 2000 counts LCD Display

Test DC/AC Voltage,DC/AC Current, Resistance

Diode test, Continuity,Max data hold,Low battery indication

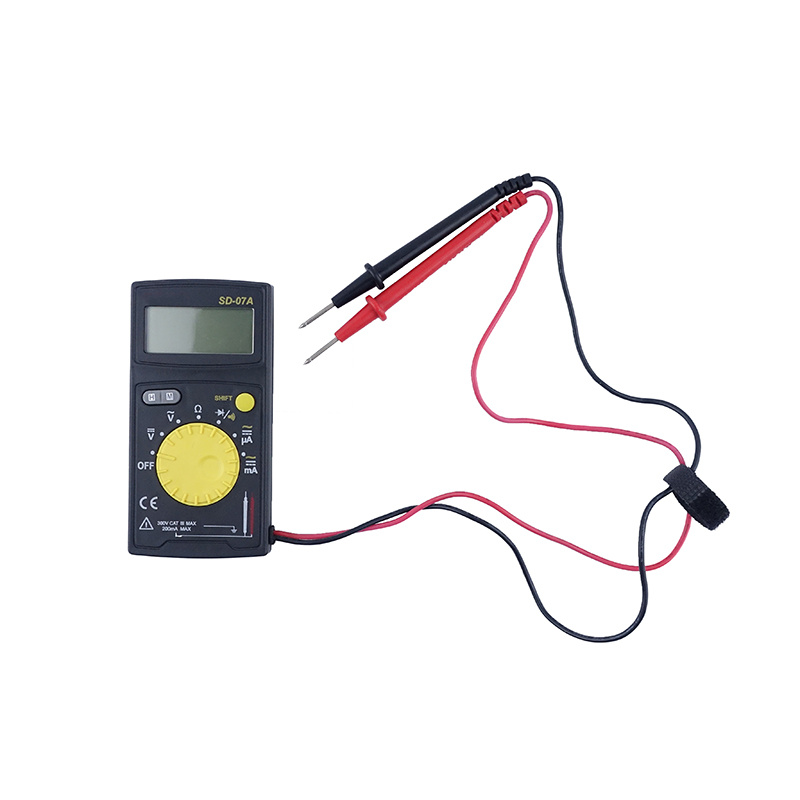

Digital Multimeter SDT-07A
Specification	Range	Accuracy
DC Voltage	200m/2/20/200/500V	±(0.5%+5)
AC Voltage	2/20/200/500V	±(0.8%+5)
AC Current	200/2000μA/20/200mA	±(1.8%+5)
DC Curent	200/2000μA/20/200mA	±(1.8%+5)
Resistance	200Ω/20KΩ/2MΩ	＜1MΩ±(0.8%+5)　 ≥1MΩ±(2%+5)
Feature
Display Count		2000
Diode test		√
Continuity(audible)		＜50Ω
Auto/Manual		Auto
Frequency response(Hz)		50/60
Low battery Display		√
Date hold		√
General Characteristic
Power	2×1.5V LR44 Button Cell
LCD size	44.5×19.0 mm
Product Size	115x58x12mm
Product Net weight	84g

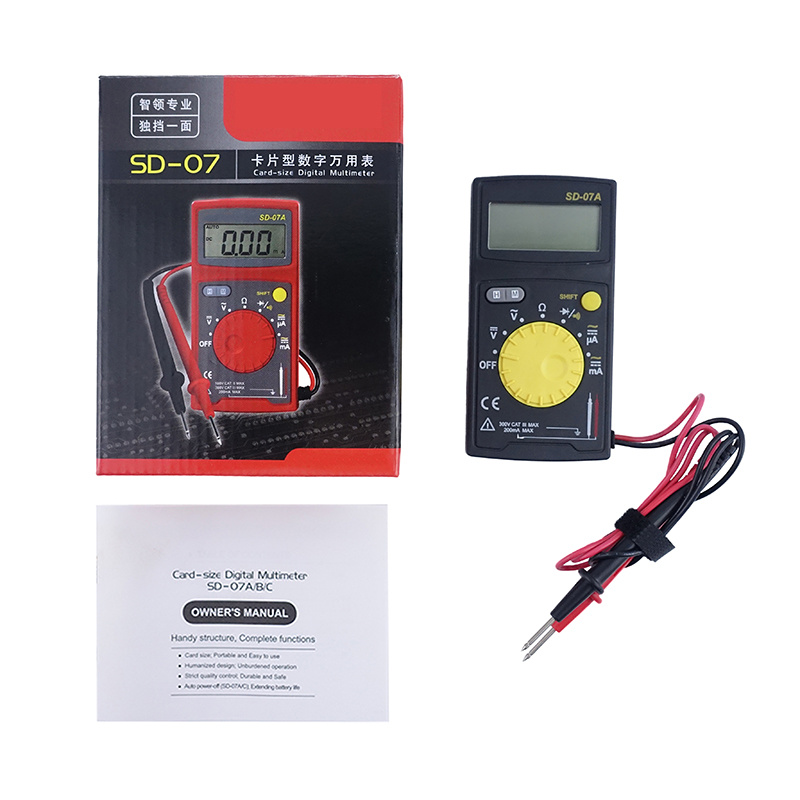

Standard Accessories	Battery,Test leads,Manual, Blister Card.
