SDT-26B

2000 Count,Manual Range Test DC/AC Voltage,DC/AC Current,Resistance,Battery check Diode Test,Continuity,Low Battery indicator,Backlight,Data Hold

Product Line: SDT-26B

LVD:

EMC:

OTHER:

2000 Count,Manual Range

Test DC/AC Voltage,DC/AC Current,Resistance,Battery check

Diode Test,Continuity,Low Battery indicator,Backlight,Data Hold

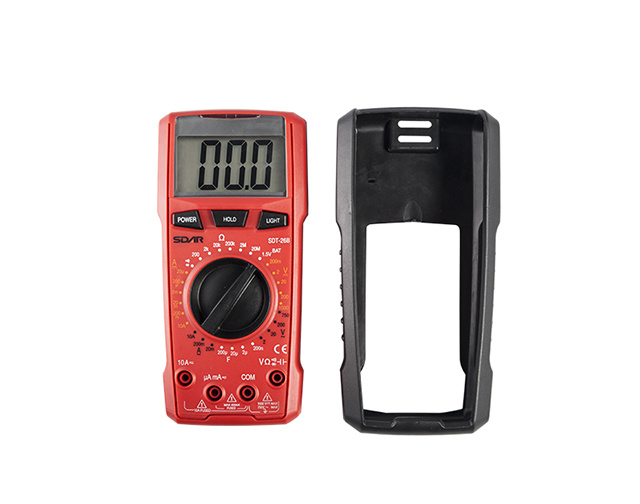

Digital Multimeter SDT-26B
Specification	Range	Accuracy
DC Voltage	200m/2/20/200/1000V	±(0.5%+5)
AC Voltage	2/20/200/750V	±(1.0%+5)
DC Current	20µA/200µA/2mA/20mA/200mA	±(1.2%+3)
DC Current	10A	±(1.5%+5)
AC Current	20mA/200mA,	±(1.2%+5)
AC Current	10A	±(2.5%+5)
Resistance	200/2k/20K/200KΩ	±(1.2%+3)
Resistance	2M/20MΩ	±(1.8%+5)
Capacitance	200nF/2µF/20µF/200µF	±(4.0%+5)
Feature
Display Count		2000
Battery Check	1.5V(40mA)	√
Diode Check		√
Continuity Check		√
Low battery indicator		√
Overload indicator		√
Data Hold		√
Back Light		√
Auto/Manual		manual
General Characteristic
Power	9V, 6F22
Product Size	190x93.5x52mm
Product Net weight	291g
Standard Accessories	Tesat lead, Manual,Battery, Blister Card.
