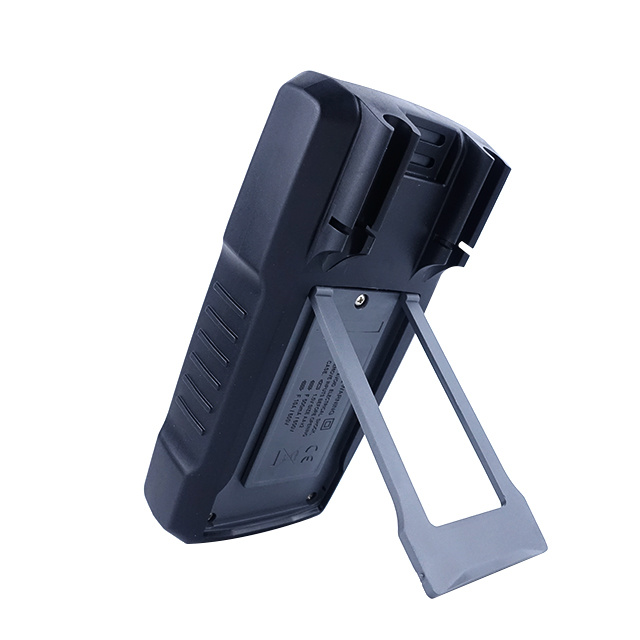

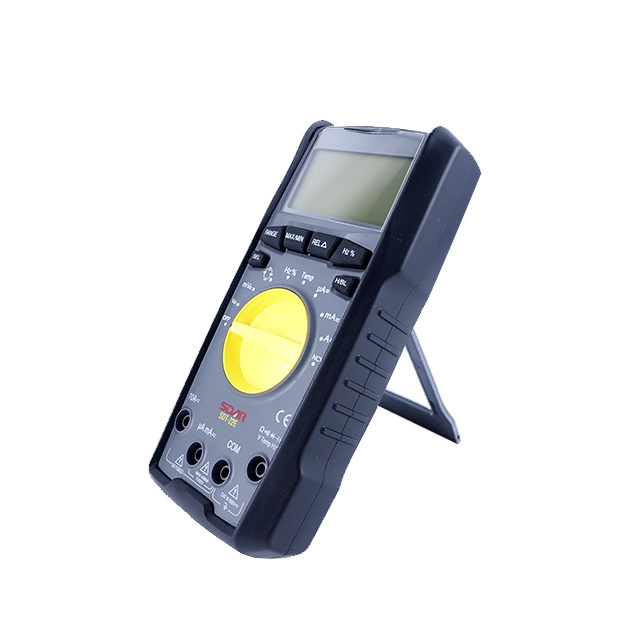

SDT-22E
4000 Count,Auto Range
Product Line: SDT-22E
LVD: EN 61010-1:2010, EN 61010-2-033:2012, EN 601010-031:2015
EMC: EN 61326-1:2013, EN 61326-2-1:2013
OTHER:
- Product description
- parameter
- Product parameters
-
4000 Count,Auto RangeTest DC/AC Voltage,DC/AC Current,Resistance,Frequency,Capacitance,TemperatureDiode Test,Continuity,NCV,Low Battery indicator,Backlight,Data HoldSafety Rating: CATⅢ 600V
-
-
-
Digital Multimeter SDT-22E Specification Range Accuracy DC Voltage 40m/400m/4/40/400/600V ±(0.5%+5) AC Voltage 40m/400m/4/40/400/600V ±(1.0%+5) DC Current 400µA/4000µA/40m/400mA ±(1.2%+3) 10A ±(1.5%+5) AC Current 400µA/4000µA/40m/400mA ±(1.2%+5) 10A ±(2.5% +5) Resistance 400/4K/40K/400KΩ ±(1.2%+2) 4M/40MΩ ±(1.8%+2) Frequency 10MHz ±(1.0%+5) Capacitance 40nF/400nF/4µF/40µF/400µF ±(4.0%+5) Temperature (-40℃ to 800℃)[-40℉ to 1472℉] ±(3.5%+5) Feature Display Count 4000 Diode Check √ Continuity Check √ NCV √ Low battery indicator √ Overload indicator √ Auto Power OFF √ Data Hold √ Relative Measure √ Back Light √ Max/Min √ General Characteristic Power 3V (1.5V AA x 2) Product Size 190x93.5x52mm Product Net weight 291g Standard Accessories Test leads, Manual,Battery, Blister Card, K-Type Temperature Probe Safety Rating CATIII 600V
