SDT-22C
Digital Multimeter,2000 Count LCD Display
Product Line: SDT-22C
LVD: EN 61010-1:2010, EN 61010-2-033:2012, EN 601010-031:2015
EMC: EN 61326-1:2013, EN 61326-2-1:2013
OTHER:
- Product description
- parameter
- Product parameters
-
Digital Multimeter,2000 Count LCD DisplayTest DC/AC Voltage,DC/AC Current,Resistance,Frequency,Capacitance,Inductance,Temperature testDiode Test,Continuity,Low Battery indicator,Manual Range,Backlight,Data Hold,hFE Test,Auto Power offSafety Rating: CATⅢ 600V
-
-
-

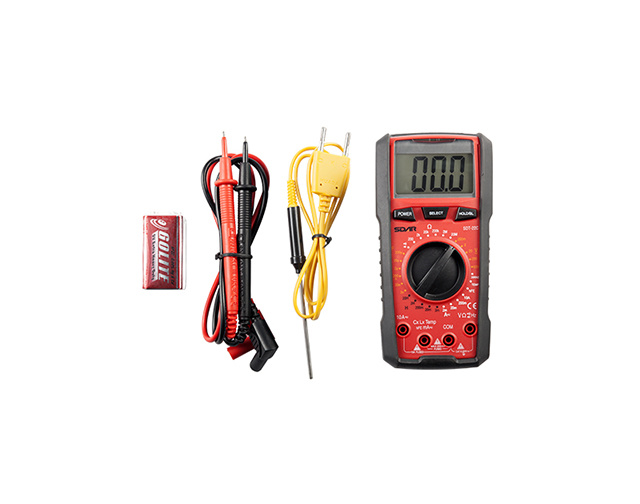

Digital Multimeter SDT-22C Specification Range Accuracy DC Voltage 200m/2/20/200/600V ±(0.5%+5) AC Voltage 200m/2/20/200/600V ±(1.0%+5) DC Current 200µA/2m/20m/200m/2/10A ±(1.0%+5) AC Current 200µA/2m/20m/200m/2/10A ±(1.5%+5) Resistance 200/2k/20K/200KΩ ±(0.8%+5) 2M/20MΩ ±(0.8%+5) Feature Display Count 2000 Diode Check √ Continuity Check √ NCV √ Max H √ Low battery indicator √ Overload indicator √ Auto Power OFF √ Data Hold √ Back Light √ Atuo/manual Auto General Characteristic Power 3V (1.5V AA x 2) Product Size 190x93.5x52mm Product Net weight 291g Standard Accessories Tesat lead, Manual,Battery, Blister Card. Safety Rating CATIII 600V
