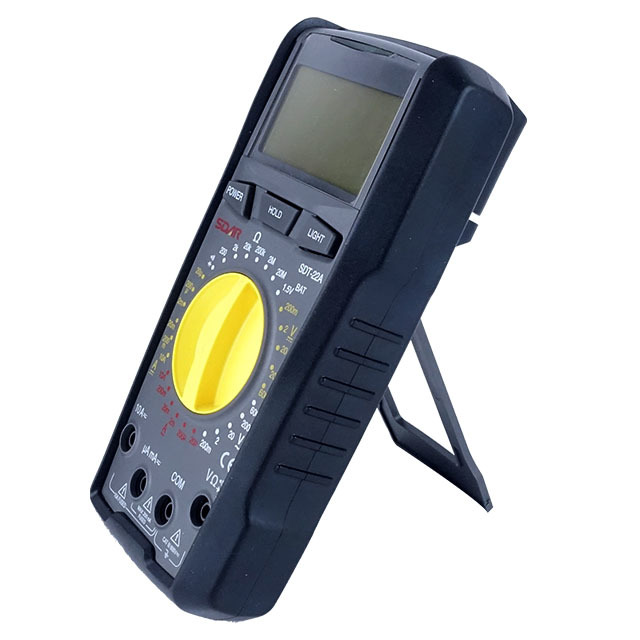

Digital Multimeter,2000 Count LCD Display

Product Line: SDT-22A

LVD: EN 61010-1:2010, EN 61010-2-033:2012, EN 601010-031:2015

EMC: EN 61326-1:2013, EN 61326-2-1:2013

OTHER:

  • Product description
  • parameter
  • Product parameters
  • Digital Multimeter,2000 Count LCD Display
    Test DC/AC Voltage,DC/AC Current,Resistance,Battery check
    Diode Test,Continuity,Low Battery indicator,Manual Range,Backlight,Data Hold
    Safety Rating:  CATⅢ 600V

  • Digital Multimeter SDT-830G
    Specification Range Accuracy
    DC Voltage 200m/2/20/200/600V ±(0.5%+5)
    AC Voltage 200m/2/20/200/600V ±(1.0%+5)
    DC Current 20µA/200µA/2mA/20mA/200mA ±(1.2%+3)
    10A ±(1.5%+5)
    AC Current 20µA/200µA/2mA/20mA/200mA ±(1.2%+5)
    10A  ±(2.5%+5)
    Resistance 200/2k/20K/200KΩ ±(1.2%+2)
    2M/20MΩ   ±(1.8%+2)
    Feature
    Display Count   2000
    Battery Check 1.5V(40mA) √
    Diode Check   √
    Continuity Check   √
    Low battery indicator   √
    Overload indicator   √
    Data Hold   √
    Back Light   √
    Auto/manual   manual
    General Characteristic
    Power 9V,   6F22 ;
    Product Size  190x93.5x52mm
    Product Net weight 291g

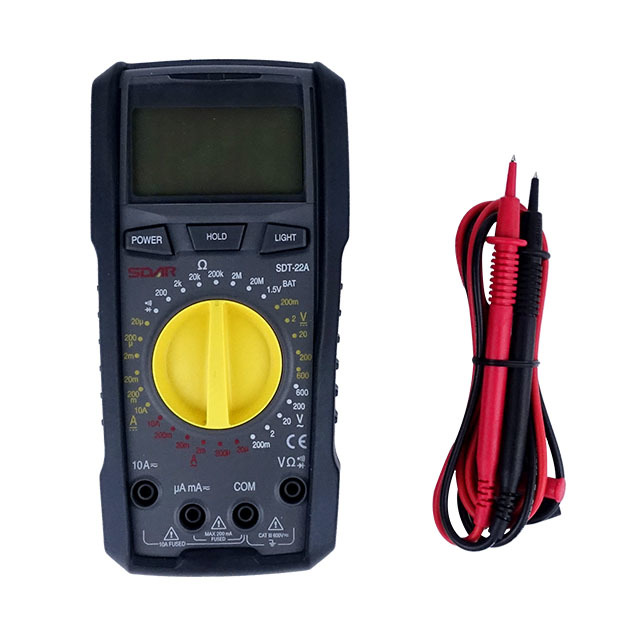

    Standard Accessories Tesat lead, Manual,Battery, Blister Card.
    Safety Rating CATIII 600V
